One of the most consequential decisions in data center power distribution is one most operators don't think about until they're deep into a build — how power gets from the switchboard to the rack.

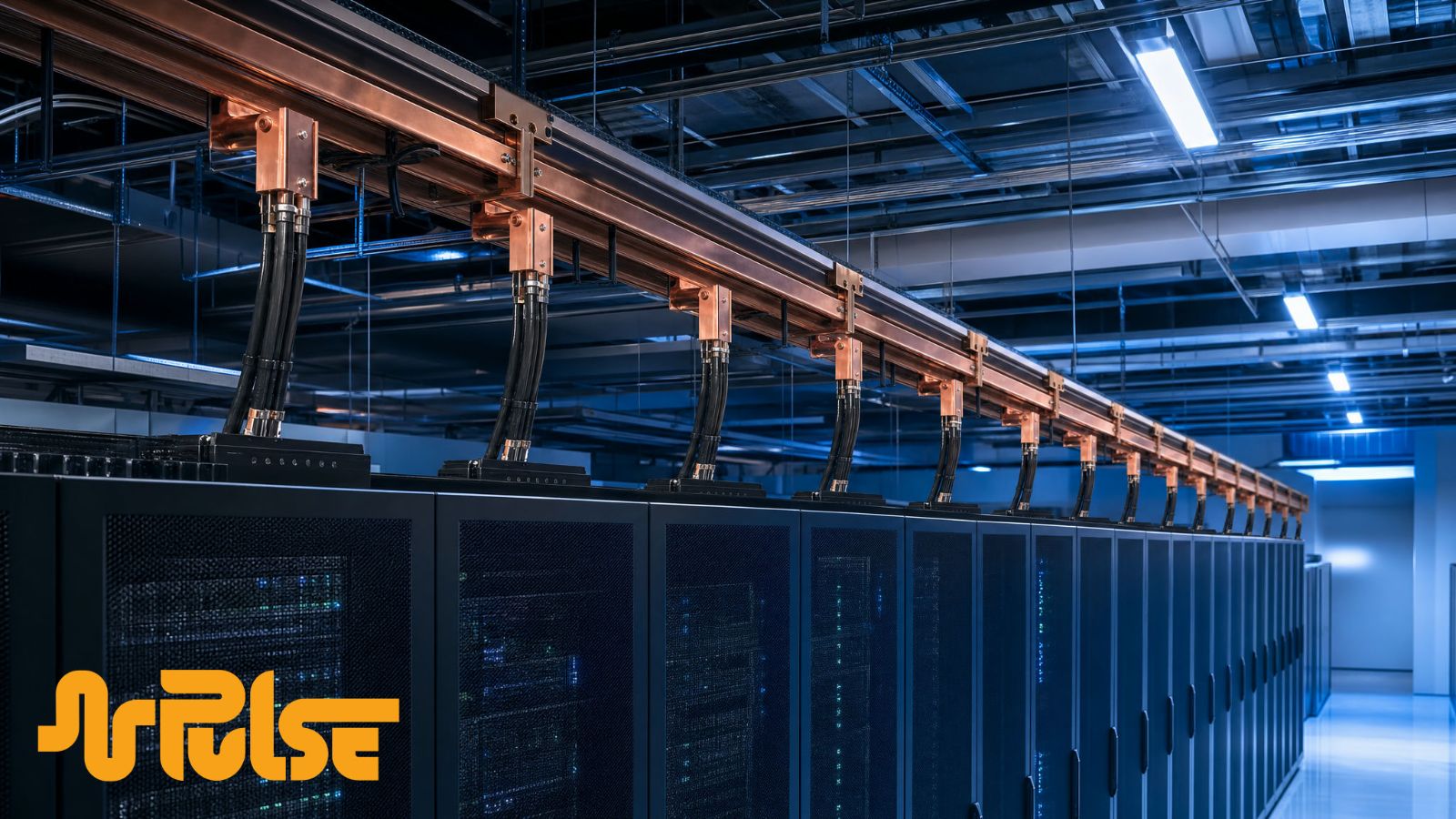

🔵 Overhead busway = one feeder circuit runs the whole row, racks tap off along the way
🔴 Individual whips = one dedicated circuit run per rack, straight from switchboard to destination
The Math: 10 Vera Rubin NVL72 Racks at 800VDC
Overhead Busway:
* 2 busway runs, one per row
* Each fed by a 1200A feeder breaker
* Each rack taps off at 360A
* Total switchboard feeder circuits: 4 ✅
Individual Whips (100AT per circuit):
* Each rack at 230kW needs 4 whips (NEC 125% margin)
* 10 racks × 4 whips = 40 individual circuits
* 40 breakers, 40 cable runs ❌
Busway reduces your switchboard feeder count by 90%.
At a Glance: Busway vs. Whips
* Switchboard circuits: 4 vs. 40
* Cable runs: 4 main + short taps vs. 40 full runs
* Move a rack: tap a new point vs. re-run cable
* Upfront cost: higher vs. lower
* Long-term manageability: excellent vs. complex
* Best for: 5+ racks, high density vs. 1–4 racks, low density
When Individual Whips Make Sense
✅ Small deployments of 1–4 racks
✅ Temporary or pilot deployments
✅ Mixed-density environments
✅ Retrofit situations where busway isn't feasible
For anything beyond a handful of racks — especially AI deployments — busway wins every time.
800VDC Busway Spec for AI Deployments
⚡ Conductor: 1" × 3" C11000 ETP copper per pole
⚡ Voltage rating: 1,000VDC minimum, 1,500VDC preferred
⚡ Creepage: 32mm between + and − poles
⚡ Tap plugs: 360A at 800VDC, 24" on-center spacing
⚡ Voltage drop at 1,200A over 100ft: less than 1 volt — essentially zero
Global1 Resources Manufactures Custom Busway
Off-the-shelf 800VDC overhead busway doesn't exist yet — this is a new frontier most catalog manufacturers haven't caught up to. That's where we come in.
✅ 800VDC 2-wire busway — engineered to your rack layout
✅ Standard AC busway — 480V, single and three-phase
✅ Custom tap spacing — matched to your rack pitch and row length
✅ Full system design — coordinated with switchboard feeder design
✅ PULSE™ enclosures and PDUs — complete the deployment
